DESCRIPTION
Adjust vehicle height, rebound and compression damping with the KW V3 Coilover Kit 3522000F for your 2014+ BMW 2 Series F22 M235i Coupe w/o EDC, 2014+ BMW 4 Series F32 435i Coupe RWD w/o EDC and 2012+ BMW 3 Series F30 335i RWD w/o EDC.
KW Suspension's V3 Coilover System is known as the "benchmark" coilover system. KW V3 Coilover Systems allows the driver to independently adjust vehicle height, compression (bump) and rebound damping, enhancing the car's handling to suit any street track or race circuit. KW V3 Coilovers utilize a CNC machined, threaded strut body housing and adjustable spring perches, thereby allowing you to change your vehicle's height within a specified adjustment range. KW V3 Coilovers also allows the driver to separately adjustment the rebound and compression damping. The KW bottom valve adjusts the low-speed range of the compression (bump) level in 12-clicks to manually influence body roll without having to change spring rate. The KW top valve adjusts rebound damping with 16 -clicks, reducing body movements to increase vehicle stability at higher corner speeds. All KW V3 Coilover systems are constructed using stainless steel, "INOX" strut housings that provide extreme corrosion and rust resistance for years of trouble free use in all types of environmental climates.

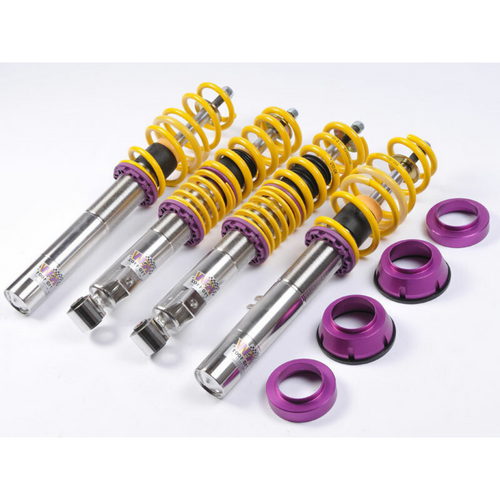

The above images are for illustrative purposes only. Vehicle specific kits may vary from what is displayed.
Variant 3 (V3) Coilover Kit Features:
- Rebound adjustable shock damper technology (16 clicks)
- Compression (bump) adjustable shock damper technology (12 clicks)
- User defined vehicle height adjustability
- "INOX" line stainless steel construction for corrosion and rust protection
- TUV tested and approved height adjustment ranges
- High-quality, CNC machined components for long life
- Limited Lifetime Warranty to the original retail purchaser from manufacturing defects.
NOTE: We have hundreds of KW Coilover Kits in stock and ready to ship out on the same day (for orders placed before 12PM EST). In the event your ordered KW Coilover Kit is on backorder or needs to be special ordered from Germany, we will notify you via email within 24 hours. For rush/overnight delivery requests, please Contact Us via phone prior to ordering online.
2014+ BMW 2 Series F22 M235i Coupe w/o EDC Specifications:
- Vehicle Fitment: 2014+ BMW 2 Series F22 M235i Coupe w/o EDC
- Fitment Footnotes: 2, 6. See Footnote Table for more information
- Front Lowering Adjustment Range, Spring Rate: 10-35 mm / 0.4-1.4 inch, Progressive
- Rear Lowering Adjustment Range, Spring Rate: 5-35 mm / 0.2-1.4 inch, 630 lb/inch
2014+ BMW 4 Series F32 435i Coupe RWD w/o EDC Specifications:
- Vehicle Fitment: 2014+ BMW 4 Series F32 435i Coupe RWD w/o EDC
- Fitment Footnotes: 2, 62, 67. See Footnote Table for more information
- Front Lowering Adjustment Range, Spring Rate: 25-50 mm / 1.0-2.0 inch, Progressive
- Rear Lowering Adjustment Range, Spring Rate: 30-55 mm / 1.2-2.1 inch, 630 lb/inch
2012+ BMW 3 Series F30 335i RWD w/o EDC Specifications:
- Vehicle Fitment: 2012+ BMW 3 Series F30 335i RWD w/o EDC
- Fitment Footnotes: 2, 62, 67. See Footnote Table for more information
- Front Lowering Adjustment Range, Spring Rate: 40-65 mm / 1.6-2.5 inch, Progressive
- Rear Lowering Adjustment Range, Spring Rate: 30-60 mm / 1.2-2.4 inch, 630 lb/inch
